124FS

12AWG 4C SOLID BC SHIELDED FPLR/CL3R 75C RED

SKU: 124FS

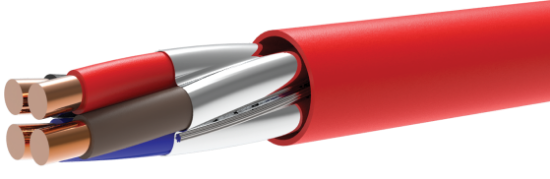

12 AWG 4C SOLID BARE COPPER WIRE WITH .010" PVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" RED PVC JACKET.

(UL) FPLR OR CL3R 75'C FT-4 SUN RES "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, BROWN, BLUE.

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	12 Awg Solid
Material	Bare Copper Wire
Conductor Count	4
Insulation
Material	Polyvinylchloride
Wall Thickness	.009"
Color Code	Black, Red, Brown, Blue
Assembly
Nominal Lay Length	4.00”
Shield	Aluminum Mylar Tape Shield - 100% Coverage
Drain Wire	24 Awg 7 Strand Tinned Copper Wire
Jacket
Material	Polyvinylchloride
Wall Thickness	.015"
Diameter	0.275”
Color	Red
Ripcord	Yes
Weight	101 lbs per mft
Nominal Diameter	0.270”
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 12AWG 4C SHIELDED 75C (UL) CL3R OR FPLR FT4 “ROHS COMPLIANT” MADE IUSA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C

Copper Price 11/19/2024 4.0960
