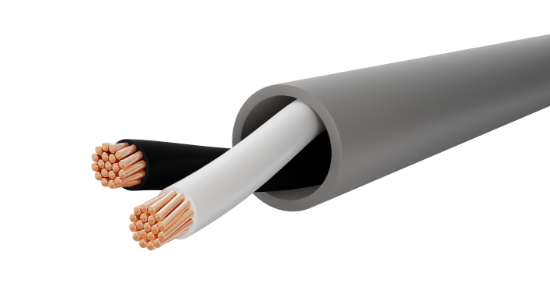

Picture of 162CPT19
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

162CPT19

Not what you were looking for?
16 AWG 2 conductor 19 strand tinned copper wire, SRPVC insulation, unshielded with an overall PVC jacket. (UL) CMG or AWM 2598.
SKU: 162CPT19


• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2598, 60°C, 300V per UL standard 758
• For internal wiring or external interconnection of electronic equipment
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Operating Voltage: 300V RMS
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG 19 Strands
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialSemi-Rigid Polyvinylchloride
Wall Thickness0.023”
Color CodeBlack, White
Assembly
Nominal Lay Length2.00” LHL (6.0 Tw/Ft)
ShieldN/A
Drain WireN/A
GroundN/A
FillersN/A
BinderN/A
Jacket
MaterialSleeve Extruded Polyvinylchloride
Wall Thickness0.032”
Diameter0.268”± 0.020”
ColorChrome
RipcordYes
Weight38 Lbs/Mft
Cold Bend RatingN/A
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 16AWG 2C 105C C(UL)US CMG SUN RES FT4 OR AWM 2598 60C 300V "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes, Ascending/Descending
Standards
Maximum Voltage300V

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
