182FS

18AWG 2C SOLID BC SHIELDED FPLR/CMR/CL3R 75C RED

SKU: 182FS

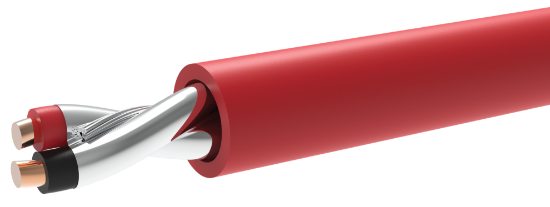

18 AWG 2C SOLID BARE COPPER WIRE WITH .007" PVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" RED PVC JACKET.

(UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	18 Awg Solid
Material	Bare Copper Wire
Conductor Count	2
Insulation
Material	Polyvinylchloride
Wall Thickness	.009"
Color Code	Black, Red
Assembly
Nominal Lay Length	3.00”
Shield	Aluminum Mylar Tape Shield - 100% Coverage
Drain Wire	24 Awg 7 Strand Tinned Copper Wire
Jacket
Material	Polyvinylchloride
Wall Thickness	.015"
Diameter	0.142”
Color	Red
Ripcord	Yes
Weight	18 lbs per mft
Nominal Diameter	0.140”
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 18AWG 2C SHIELDED 75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 "ROHS COMPLIANT" MADE IN USA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C

Copper Price 12/13/2024 4.1875
