18/2PR 7XBC NS CMR 75C GRAY

SKU: 182PRC

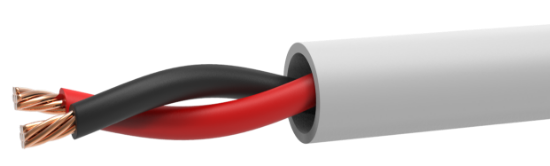

18 AWG 2 PAIR 7 STRAND BARE COPPER WIRE WITH .007" PVC INSULATION, NON-SHIELDED, OVERALL .015" GRAY PVC JACKET.

(UL) CMR C(UL)US OR (UL) CL3R 75'C SUN RES FT4 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED, BLACK & WHITE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	18 Awg 7 Strand
Material	Bare Copper Wire
Conductor Count	2 Pair
Insulation
Material	Polyvinylchloride
Wall Thickness	.007"
Color Code	Black & Red, Black & White
Assembly
Nominal Lay Length	3.00”
Jacket
Material	Polyvinylchloride
Wall Thickness	.015"
Color	Gray
Ripcord	Yes
Nominal Diameter	0.223”
Weight	31 lbs per mft
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 18AWG 2PR 75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 "ROHS COMPLIANT" MADE IN USA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C

Copper Price 12/3/2024 4.1255
