Picture of 202CSTP-06BLD
Picture of 202CSTP-06BLD
Picture of 202CSTP-06BLD
Picture of 202CSTP-06BLD

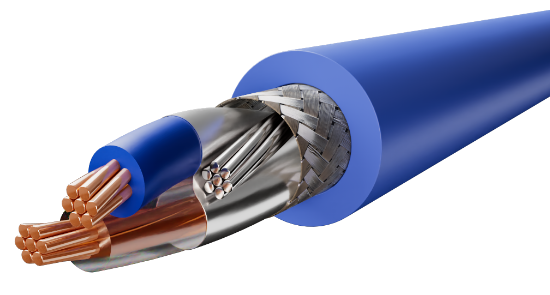

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

202CSTP-06BLD

Not what you were looking for?
20 AWG 2 conductors 7 strands tinned copper wire, PE insulation, an aluminum/mylar shield, a tinned copper braid shield and an overall PVC jacket.
SKU: 202CSTP-06BLD


20 AWG 2C 7 STRAND TINNED COPPER WIRE WITH .019" PE INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE,
OVERALL TINNED COPPER BRAID SHIELD WITH 55% MINIMUM COVERAGE, OVERALL .032" BLUE PVC JACKET. (UL) CM/CMG C(UL)US 75'C FT-4 OR AWM 2464 300V 80'C VW-1 "ROHS COMPLIANT"

MADE IN USA

CC: BLUE & CLEAR

IMPEDANCE: 77.2 OHMS

CAPACITANCE: 19.7 PF/FT

DC RESISTANCE: 9.30 OHMS PER MFT AT 20'C

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding20 AWG 7 Strand Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Conductor
Insulation
MaterialPolyethylene
Wall Thickness.019"
Color CodeBlue & Clear
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage (Foil Facing Out)
Drain Wire20 AWG 7 Strands Tinned Copper
Nominal Lay Length
Jacket
MaterialPolyvinylchloride
Wall Thickness0.032”
Diameter0.233” ± 0.020”
ColorBlue
RipcordYes
Cold Bend RatingN/A
Weight32 Lb/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 20AWG 2C SHIELDED 75C C(UL)US CM OR AWM STYLE 2464 300V 80C “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
Approvals
Approvals List

• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CM per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2464, 80°C, 300V per UL standard 758
• For internal wiring or external interconnection of electronic equipment
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
