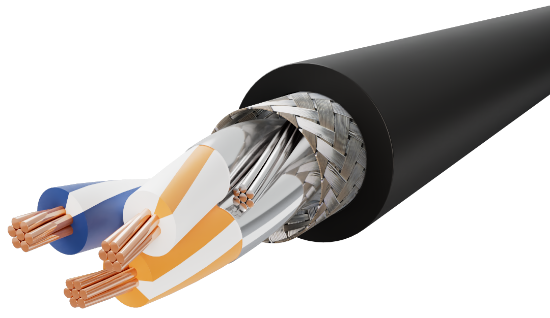

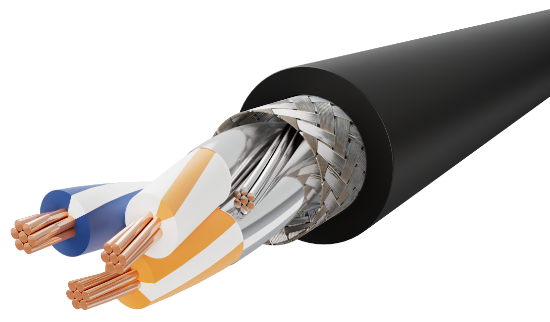

Picture of 223CSTFPBRD-00
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

223CSTFPBRD-00

Not what you were looking for?
22 AWG 1 pair + 1 conductor 7 strands tinned copper wire with Foam PE insulation, aluminum/mylar shield, a stranded tinned copper drain wire, a tinned copper braid shield, and an overall PVC jacket
SKU: 223CSTFPBRD-00


• Cable suitable for installation under NEC (NFPA 70) articles 800 & 725 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CM per UL standard 444 and per CSA C22.2 No. 214-17
• UL listed as PLTC or CL3 per UL standard 13
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
•Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding
Material
Conductor Count
Insulation
Material
Wall Thickness
Color Code
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar – 100% Coverage
Drain Wire22 AWG 7 Strand Tinned Copper
Nominal Lay Length
Jacket
MaterialTube Extruded Polyvinylchloride
Wall Thickness0.040”
Diameter0.277” ± 0.020”
ColorBlack
RipcordYes
Cold Bend RatingN/A
Weight39 Lbs/Mft
Markings
TypeCable permanently identified via ink jet in White ink on jacket
LegendLAKE CABLE E171202 22AWG 1.5PR 75C SHIELDED (UL) PLTC SUN RES OR CL3 OR C(UL)US CM “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes (Ascending/Descending)

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
