224F

Not what you were looking for?

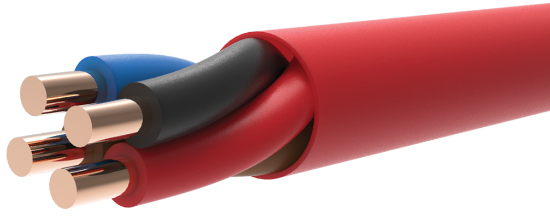

22AWG 4C SOL BC NS PVC/PVC (UL) CMR/CL3R/FPLR 75C RED

SKU: 224F

22 AWG 4C SOLID BARE COPPER WIRE WITH .007" PVC INSULATION, NON-SHIELDED, OVERALL .015" RED PVC JACKET.

(UL) FPLR OR (UL) CMR C(UL)US 75'C SUN RES FT-4 "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, BROWN, BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	22 Awg Solid
Material	Bare Copper Wire
Conductor Count	4
Insulation
Material	Polyvinylchloride
Wall Thickness	.009"
Color Code	Black, Red, Brown, Blue
Assembly
Nominal Lay Length	1.50”
Shield	N/A
Drain Wire	N/A
Jacket
Material	Polyvinylchloride
Wall Thickness	.015"
Diameter	0.125”
Color	Red
Ripcord	Yes
Weight	14 lbs per mft
Nominal Diameter	0.125”
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202{s} 22AWG 4C 75C (UL) CL3R SUN RES OR FPLR OR C(UL)US CMR FT4 "ROHS COMPLIANT" MADE IN USA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C

Copper Price 12/20/2024 4.0325
