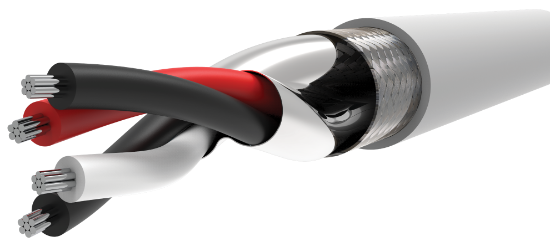

Picture of B222PRCSTBRD-45
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

B222PRCSTBRD-45

Not what you were looking for?
22 AWG 2 pair 7 strand tinned copper wire, PVC insulation, a braided shield with an overall PVC jacket
SKU: B222PRCSTBRD-45


• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2464, 80°C, 300V per UL standard 758
• For internal wiring or external interconnection of electronic equipment
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Operating Voltage: 300V RMS
• Made in the USA
• WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding
Material
Conductor Count
Insulation
Material
Wall Thickness
Color Code
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldCable Shield: Aluminum Mylar – 100% Coverage (Foil Out) Braid Shield: 36 AWG Tinned Copper - 65% Coverage
Drain WireN/A
Nominal Lay Length
Jacket
MaterialTube Extruded Polyvinylchloride
Wall Thickness0.035”
Diameter0.253” ± 0.020”
ColorChrome Gray
RipcordYes
Cold Bend Rating80˚C
Weight34 lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E171197 22AWG 2PR SHIELDED 75C C(UL)US CMG AWM 2464 300V 80C FT4 “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes (Ascending/Descending)

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
