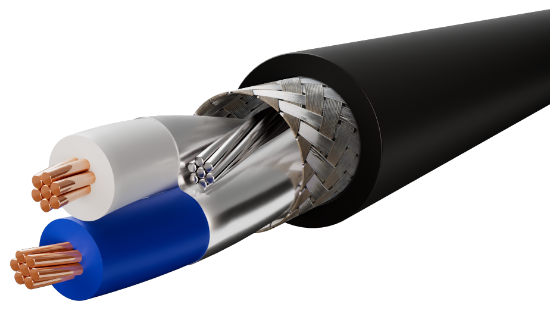

Picture of BT222STFPBRD
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

BT222STFPBRD

Not what you were looking for?
22 AWG 1 pair 7 strand tinned copper wire, Foam PE insulation, shielded, and an overall PVC jacket.
SKU: BT222STFPBRD


• Cable suitable for installation under NEC (NFPA 70) articles 725 and 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214-17
• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as PLTC per UL standard 13
• UL approved for Sunlight Resistance applications
• Cable meets IEEE 1202 or UL 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA
•WARNING: This product contains chemicals, including lead, known to the state of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling
• Meets EIA Standard RS485
•Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count1 Pair
Insulation
MaterialFoamed Polyethylene
Wall Thickness0.027”
Color CodeWhite/Blue x Blue/White
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire22 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.045”
Diameter0.281” ± 0.015”
ColorBlack
RipcordYes
Cold Bend RatingN/A
Weight38 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171202 22AWG 2C SHLD 75C (UL) PLTC OR C(UL)US CMG SUN RES FT4 “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
