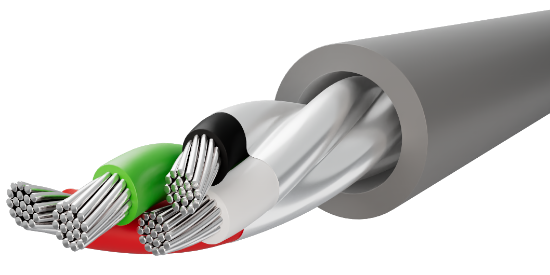

Picture of C184CST(19)-45BL
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

C184CST(19)-45BL

Not what you were looking for?
18 AWG 4 conductor 19 strand tinned copper wire with SRPVC insulation, shielded and an overall PVC jacket.
SKU: C184CST(19)-45BL


• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2464, 80°C, 300V per UL standard 758
• For internal wiring or external interconnection of electronic equipment
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 19 Strands Class C
MaterialAnnealed Tinned Copper
Conductor Count4 Conductors
Insulation
MaterialSemi-Rigid Polyvinylchloride
Wall Thickness0.011”
Color CodeBlack, Red, White, Green
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage (Foil Out)
Drain Wire20 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.035”
Diameter0.035”
ColorChrome
RipcordYes
Cold Bend RatingN/A
Weight49 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 18AWG 4C SHIELDED 75C C(UL)US CMG SUN RES FT4 OR AWM 2464 300V 80C “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes
