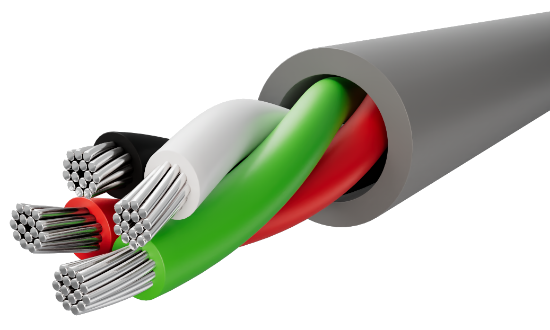

Picture of C184T(16)-2598
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

C184T(16)-2598

Not what you were looking for?
18 AWG 4 conductors 16 strands tinned copper wire, PVC insulation, unshielded, with an overall PVC jacket. C(UL)US CMG 105’C or AWM 2598
SKU: C184T(16)-2598


• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CMG per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component AWM 2598 300V 60℃ per UL standard 758
• UL approved for Sunlight Resistant Applications
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Maximum Operating Voltage: 300V RMS
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 16 Strands Class C
MaterialAnnealed Tinned Copper
Conductor Count4 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.017”
Color CodeBlack, White, Red, Green
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.032”
Diameter0.257” ± 0.015”
ColorChrome
RipcordYes
Cold Bend RatingN/A
Weight43 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 18AWG 4C 105C C(UL)US CMG SUN RES FT4 OR AWM 2598 60C 300V "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes, Ascending/Descending
