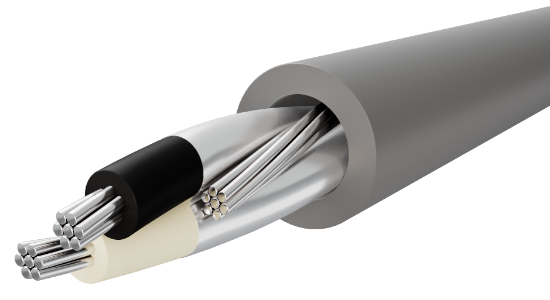

Picture of C222CSTP-45
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

C222CSTP-45

Not what you were looking for?
22 AWG 2 conductor 7 strand tinned copper wire, polyethylene insulation, shielded, with an overall PVC jacket.
SKU: C222CSTP-45


• UL listed as type CM C(UL)US 75°C per UL standard 444
• UL recognized component as type AWM 2092 per UL standard 758
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Cable is UL approved for Sunlight Resistant Applications
• Maximum Operating Voltage: 300V RMS
•Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPolyethylene
Wall Thickness0.017”
Color CodeBlack, Clear
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire22 AWG 7 Strand Tinned Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness0.025”
Diameter0.176” ± 0.015”
ColorChrome Gray
RipcordNo
Cold Bend RatingN/A
Weight17 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 22AWG 2C 75C C(UL)US CM SUN RES OR AWM 2092 300V 60C “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes, Ascending/Descending

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
