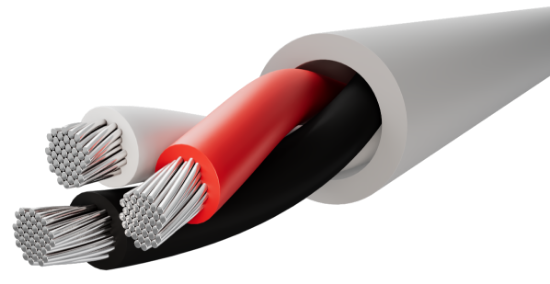

Picture of ST143T(41)-45
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

ST143T(41)-45

Not what you were looking for?
14 AWG 3 conductor 41 strand tinned copper wire, PVC insulation, unshielded, with an overall PVC jacket. (UL) ITC or PLTC 105°C SUN RES DIR BUR FT-4
SKU: ST143T(41)-45


• Cable suitable for installations under NEC (NFPA 70) article 725 and article 727 guidelines
• UL listed as type PLTC per UL standard 13 and as type ITC per UL standard 2250
• UL recognized component as AWM 2464 per UL standard 758
• Cable is suitable for use in Class I Division 2 hazardous locations
• Cable is UL approved for Sunlight Resistant and Direct Burial Applications
• Meets IEEE 1202 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding14 AWG 41 Strands Class K
MaterialAnnealed Tinned Copper
Conductor Count3 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.024”
Color CodeBlack, Red, White
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldN/A
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.042”
Diameter0.342” ± 0.027”
ColorChrome
RipcordYes
Cold Bend RatingN/A
WeightN/A
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E208158 14AWG 3C 105C (UL) ITC SUN RES DIR BUR OR PLTC FT4 OR AWM 2464 80C 300V "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
