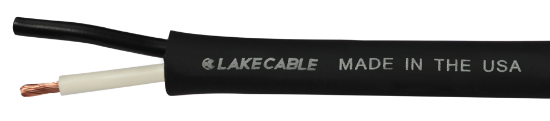

AVB132C52

13 AWG 2 conductor unshielded cable constructed with stranded bare copper, PVC insulation and an overall pressure extruded flexible polyvinylchloride jacket for Audio/Control application manufactured in the USA and is Non-UL

SKU: AVB132C52

• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Dielectric
Material	Polyvinylchloride
Diameter	0.026”
Color	Black & White
Conductor
AWG & Stranding	13 AWG 52 Strands
Material	Annealed Bare Copper
Conductors Count	2 Conductors
Assembly
Cable Lay Length	3.75” LHL (3.2 tw/ft)
Cable Binder	Tissue wrap binder – 100% Coverage
Jacket
Material	Pressure Flexible Polyvinylchloride
Wall Thickness	0.052”
Diameter	0.378” ± 0.010”
Color	Black
Ripcord	Not Required
Weight	82 Lbs/Mft
Markings
Type	Cable permanently identified via surface legend with silver ink
Legend	LAKE CABLE AVB132C52 HIGH-FLEX PORTABLE SPEAKER CABLE 2C-13AWG MADE IN THE USA ROHS COMPLIANT
Footage Markers	No
Standards
Maximum operating voltage	300V

Copper Price 11/19/2024 4.0960
