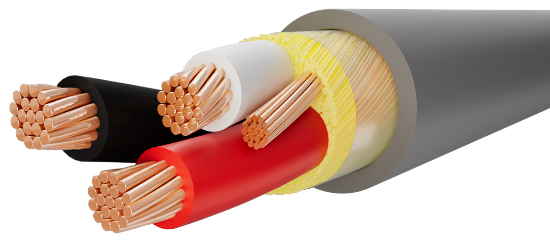

Picture of BD103(19)/3G/X18
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

BD103(19)/3G/X18

Not what you were looking for?
10AWG 3C 19STR BC + (3) 14AWG 19STR UNINS GND NS VNTC (UL) BUS DROP 600V
SKU: BD103(19)/3G/X18


10 AWG 3C 19 STRAND BARE COPPER WIRE WITH .020" PVC & .005" NYLON INSULATION +(3) #14 AWG 19 STRAND BARE COPPER UNINSULATED GROUND WIRE, NON-SHIELDED, FILLERS, OVERALL CLEAR MYLAR WRAP TAPE, OVERALL .045" GRAY PVC JACKET.

(UL) BUS DROP CABLE PVC/NYLON 600V 90C

DRY/WET OUTDOOR PVC JACKET SUN RES OIL RESISTANT 60C "ROHS COMPLIANT" MADE IN USA

CC: RED, BLACK, WHITE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding10 AWG 19 Strand Class C
MaterialBare Copper Wire
Conductor Count3
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.020" PVC, 0.005" Nylon
Color CodeMethod 1, Table E-2, Red, Black, White
Assembly
Nominal Lay Length5.75"
ShieldNon-Shielded
Drain Wire(3) Uninsulated - 14 AWG 19 Strand Bare Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness.045"
ColorGray
Outside Diameter0.451" ± 0.035"
Weight200 lbs./Mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E464768 10AWG 3C (UL) BUS DROP CABLE PVC/NYLON 600V 90C DRY/WET OUTDOOR PVC JACKET SUN RES OIL RESISTANT 60C "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range60C - 90C
Approvals
Approvals List

• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Bus Drop Cable per UL Standard 509
• Individual conductors pass UL VW-1 flame test, rated THWN-2/VW-1
• UL approved for Sunlight Resistant & Oil Resistant applications
• Meets ICEA S-73-532, where applicable (10AWG or smaller)
• Meets ICEA S-95-658, where applicable (9AWG or larger)
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
