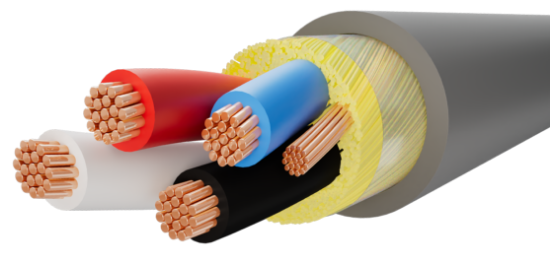

Picture of BD124(19)/3G/X18
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

BD124(19)/3G/X18

Not what you were looking for?
12AWG 4C 19STR BC + (3) UNINS GND NS PVC/N-PVC (UL) BUS DROP 600V
SKU: BD124(19)/3G/X18


12 AWG 4C 19 STRAND BARE COPPER WIRE

WITH .015" PVC & .005" NYLON INSULATION,

+ (3) 16 AWG 19 STRAND UNINSULATED BARE COPPER

GROUND WIRE, NON-SHIELDED, OVERALL CLEAR

MYLAR WRAP TAPE, OVERALL .045" GRAY PVC JACKET.

(UL) BUS DROP CABLE 600V 90'C DRY/WET OUTDOOR

SUN RES OIL RESISTANT 75'C "ROHS COMPLIANT" MADE IN USA

CC: BLACK, WHITE, RED, BLUE.

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Jacketing
RipcordYes
Conductor
AWG Size & Stranding12 AWG 19 Strand Class C
MaterialBare Copper Wire
Conductor Count4
Insulation
MaterialPolyvinylchloride/Nylon
Wall Thickness0.015" PVC, 0.005" Nylon
Color CodeMethod 1, Table E-2, Black, White, Red, Blue
Assembly
Nominal Lay Length5.25"
ShieldNon-Shielded
Drain Wire(3) Uninsulated - 16 AWG 19 Strand Bare Copper
Jacket
MaterialPolyvinylchloride
Wall Thickness.045"
ColorGray
Outside Diameter0.417" ± 0.035"
Weight161 lbs./Mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E464768 12AWG 4C (UL) BUS DROP CABLE THWN-2/VW-1 90C DRY/WET 600V PVC JACKET OUTDOOR "ROHS II" REACH MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage600V
Operating Temperature Range90C
Approvals
Approvals List

• Cable is suitable for use in Class I Division 2 hazardous locations
• UL listed as Bus Drop Cable per UL Standard 509
• Individual conductors pass UL VW-1 flame test, rated THWN-2/VW-1
• UL approved for Sunlight Resistant & Oil Resistant applications
• Meets ICEA S-73-532, where applicable (10AWG or smaller)
• Meets ICEA S-95-658, where applicable (9AWG or larger)
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
