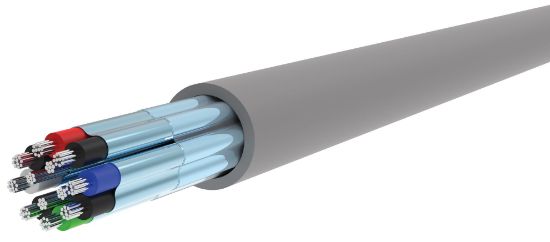

20AWG 12PR EPS 10XBC CL2/CSA/AWM 2464 300V 90C GREY
SKU: C2012EPS(10)-18


20 AWG 12 PAIR 10 STRAND BARE COPPER WIRE WITH .016" PVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, CLEAR MYLAR, OVERALL .032" GRAY PVC JACKET.

(UL) CL2 OR AWM 2464 300V 80C OR CSA AWM I/II A/B 90C 300V FT1 FT2 FT4 -40C "ROHS COMPLIANT" MADE IN USA

CC: BLACK x RED, BLACK x WHITE, BLACK x GREEN, BLACK x BLUE, BLACK x YELLOW, BLACK x BROWN, BLACK x ORANGE, RED x WHITE, RED x GREEN, RED x BLUE, RED x YELLOW, RED x BROWN

FOOTAGE MARKERS: YES

RIPCORD: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding20 Awg 10 Strand
MaterialAnnealed Bare Copper Wire
Conductor Count12 Pairs
Insulation
MaterialPolyvinylchloride
Wall Thickness0.016
Color CodeBlack & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown
Assembly
Cable Lay Length5.00" LHL (3.0 tw/ft), Nominal
Cable BinderClear Mylar Tape - 100% Coverage
Pair Lay Length3.00" LHL (4.0 tw/ft), Nominal
ShieldFoil Free Edge Aluminum Mylar Tape Tape - 100% Coverage (Aluminum side facing in)
Drain Wire20 AWG 7 Strands Tinned Copper
Jacket
MaterialTube Extruded Polyvinylchloride
Wall Thickness0.050
ColorGray
Ripcordyes
Nominal Diameter0.628 ± 0.030"
Weight235 lbs per mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 20AWG 12PR EPS 90C (UL) CL2 OR AWM 2464 300V 80C OR CSA LL226471 AWMI/II A/B 90C 300V FT1 FT2 FT4 -40C "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending
Standards
Maximum operating voltage300V
Operating Temperature Range-40 to 90C
