C204EPS(10)-18

20AWG 4PR EPS 10XBC CL2/CSA/AWM 2464 300V 90C GREY

SKU: C204EPS(10)-18

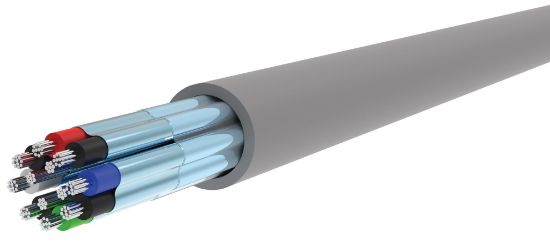

20 AWG 4 PAIR 10 STRAND BARE COPPER WIRE WITH .016" PVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .032" GRAY PVC JACKET.

(UL) CL2 OR AWM 2464 300V 80C OR CSA AWM I/II A/B 90C 300V FT1 FT2 FT4 -40C "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED, BLACK & WHITE, BLACK & GREEN, BLACK & BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	20 Awg 10 Strand
Material	Annealed Bare Copper Wire
Conductor Count	4 Pairs
Insulation
Material	Polyvinylchloride
Wall Thickness	0.016
Color Code	Black & Red, Black & White, Black & Green, Black & Blue
Assembly
Cable Lay Length	4.00" LHL (3.0 tw/ft), Nominal
Cable Binder	Clear Mylar Tape - 100% Coverage
Pair Lay Length	3.00" LHL (4.0 tw/ft), Nominal
Shield	Foil Free Edge Aluminum Mylar Tape Tape - 100% Coverage (Aluminum side facing in)
Drain Wire	20 AWG 7 Strands Tinned Copper
Jacket
Material	Tube Extruded Polyvinylchloride
Wall Thickness	0.032
Color	Gray
Ripcord	yes
Nominal Diameter	0.373" ± 0.025"
Weight	79 lbs per mft
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 20AWG 4PR EPS 90C (UL) CL2 OR AWM 2464 300V 80C OR CSA LL226471 AWMI/II A/B 90C 300V FT1 FT2 FT4 -40C "ROHS COMPLIANT" MADE IN USA
Footage Markers	Ascending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-40 to 90C

Copper Price 10/17/2024 4.3025
