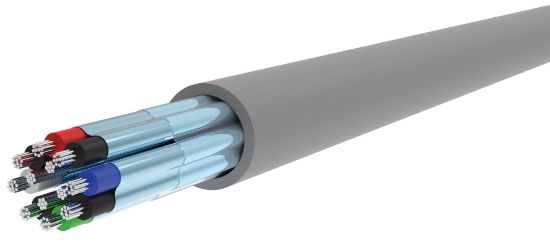

Picture of C209EPS(10)-18
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

C209EPS(10)-18

Not what you were looking for?
20AWG 9PR EPS 10XBC CL2/CSA/AWM 2464 300V 90C GREY
SKU: C209EPS(10)-18


20 AWG 9 PAIR 10 STRAND BARE COPPER WIRE WITH .016" PVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .032" GRAY PVC JACKET.

(UL) CL2 OR AWM 2464 300V 80C OR CSA AWM I/II A/B 90C 300V FT1 FT2 FT4 -40C "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED, BLACK & WHITE, BLACK & GREEN, BLACK & BLUE, BLACK & YELLOW, BLACK & BROWN, BLACK & ORANGE, RED & WHITE, RED & GREEN

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding20 Awg 10 Strand
MaterialAnnealed Bare Copper Wire
Conductor Count9 Pairs
Insulation
MaterialPolyvinylchloride
Wall Thickness0.016
Color CodeBlack & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green
Assembly
Pair Lay Length3.00" LHL (4.0 tw/ft), Nominal
Cable Lay Length4.00" LHL (3.0 tw/ft), Nominal
ShieldFoil Free Edge Aluminum Mylar Tape Tape - 100% Coverage (Aluminum side facing in)
Cable BinderClear Mylar Tape - 100% Coverage
Drain Wire20 AWG 7 Strands Tinned Copper
Jacket
MaterialTube Extruded Polyvinylchloride
Wall Thickness0.032
ColorGray
Ripcordyes
Nominal Diameter0.526 ± 0.030"
Weight163 lbs per mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 20AWG 9PR EPS 90C (UL) CL2 OR AWM 2464 300V 80C OR CSA LL226471 AWMI/II A/B 90C 300V FT1 FT2 FT4 -40C "ROHS COMPLIANT" MADE IN USA
Footage MarkersAscending
Standards
Maximum operating voltage300V
Operating Temperature Range-40 to 90C

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
