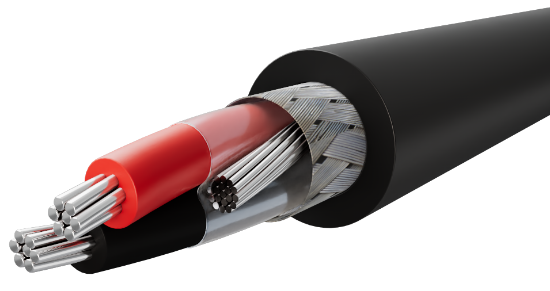

Picture of C222CT-00BRD
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

C222CT-00BRD

Not what you were looking for?
22 AWG 2 conductors 7 strands tinned copper wire with PVC insulation and an overall PVC jacket.
SKU: C222CT-00BRD


• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed CMG per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component AWM 2095, 80°C, 300V per UL standard 758
• Cable meets (UL) 1685 FT4 flame test
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (224) Updated June 10, 2022
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPolyvinylchloride
Wall Thickness0.015”
Color CodeBlack, Red
Assembly
GroundN/A
FillersN/A
BinderClear Mylar Wrap – 100% Coverage
ShieldTinned Copper Braid – 85% Min. Coverage
Drain WireN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.025”
Diameter0.190” ± 0.015”
ColorBlack
RipcordYes
Cold Bend RatingN/A
Weight25 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 22AWG 2C 75C C(UL)US CMG FT4 OR AWM 2095 300V 80C “ROHS COMPLIANT” MADE IN USA
Footage MarkersYes (Ascending/Descending)

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
