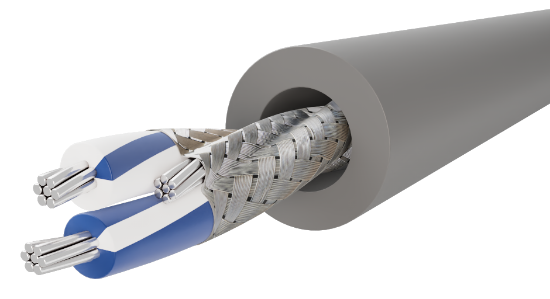

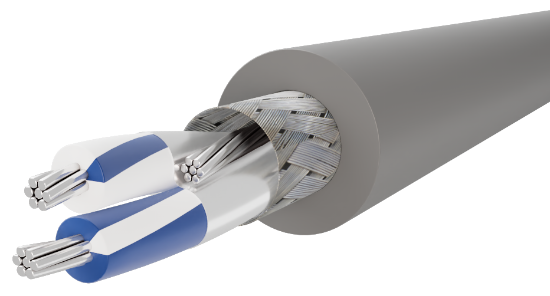

Picture of C242CSTFPBRD-BLD
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

C242CSTFPBRD-BLD

Not what you were looking for?
24 AWG 1 Pair 7 strand tinned copper wire, FMPE insulation, shielded, a tinned copper braid with an overall PVC jacket. C(UL)US CM or AWM 2919
SKU: C242CSTFPBRD-BLD


• Cable suitable for installation under NEC (NFPA 70) article 800 guidelines
• Cable suitable for installation in Canada under Section 60 of CEC, Part I
• C(UL)US listed as CM per UL standard 444 and per CSA C22.2 No. 214-17
• UL recognized component as AWM 2919, 80°C, 30V per UL standard 758
• Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
• Cable is REACH compliant per Regulation (EC) No 1907/2006 (223) Updated January 17, 2022
• Operating Voltage: 300V RMS Maximum
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding24 AWG 7 Strand Class B
MaterialAnnealed Tinned Copper
Conductor Count1 Pair
Insulation
MaterialFoamed Polyethylene
Wall Thickness0.023”
Color CodeWhite/Blue, Blue/White
Assembly
GroundN/A
FillersN/A
BinderN/A
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire24 AWG 7 Strand Tinned Copper
Jacket
MaterialTube Extruded Polyvinylchloride
Wall Thickness0.035”
Diameter0.231” ± 0.015”
ColorChrome Gray
RipcordYes
Cold Bend RatingN/A
Weight29 Lbs/Mft
Markings
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE E171197 24AWG 2C 75C C(UL)US CM SUN RES OR AWM 2919 80C 30V "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes (Ascending/Descending)

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
