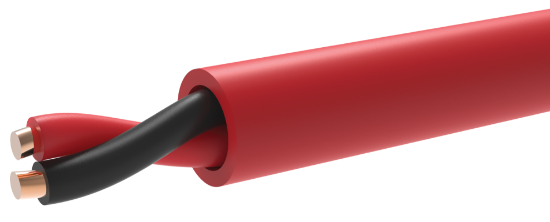

14AWG 2C SOLID BC NS FEP/FEP RED FPLP 200C

SKU: FF142LL5

14 AWG 1 PAIR SOLID BARE COPPER WIRE WITH .015" FEP INSULATION, NON-SHIELDED, OVERALL .025" RED FEP JACKET.

200'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Electricals
Impedance	80.90 Ω +/-10%
Capacitance	18.36 pF/ft. +/-10%
DC Resistance	2.52 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding	14 AWG Solid
Material	Bare Copper Wire
Conductor Count	1 Pair
AWG & Stranding	14 Awg Solid
Insulation
Material	Fluorinated Ethylene Propylene
Wall Thickness	.015"
Color Code	Black, Red
Assembly
Nominal Lay Length	4.50”
Shield	N/A
Drain Wire	N/A
Jacket
Material	Fluorinated Ethylene Propylene
Thickness	0.025”
Diameter	0.238”
Color	Red
Ripcord	No
Weight	50 lbs per mft
Wall Thickness	.025"
Nominal Diameter	.238"
Markings
Type	Printed Marker Tape
Legend	LAKE CABLE P# FF142LL5 E171203 14AWG 2C 200C (UL) FPLP FT6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA
Footage Markers	No
Standards
Maximum operating voltage	300V
Operating Temperature Range	-70C TO 200C

Copper Price 12/20/2024 4.0325
