HWV1414-X-NJ

14AWG/14C PVC BUNDLE NO JACKET (UL) HOISTWAY 60C 600V

SKU: HWV1414-X-NJ

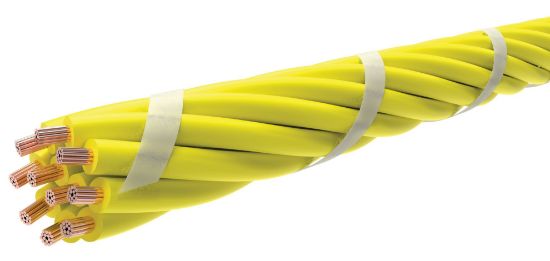

14 AWG 14C 41 STRAND BARE COPPER WIRE WITH .030" PVC INSULATION, NON-SHIELDED, OVERALL HELICALLY APPLIED POLYESTER THREAD.

C(UL)US HOISTWAY CABLE 600V 60C FT1

CC: BLACK 1-ONE, WHITE 2-TWO, GREEN 3-THREE, LAVENDER 4-FOUR THRU 10-TEN, ORANGE 11-ELEVENTHRU 14-FOURTEEN

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	14 Awg 41 Strands Class K
Material	Annealed Bare Copper
Conductor Count	14
Insulation
Material	Polyvinylchloride
Wall Thickness	0.030"
Color Code	1- Black with Numerical Print, 2 - White with Numerical Print, 3 - Green with Numerical Print, 4 thru 10 Lavendar with Numerical Print, 11 thru 14 Orange with Numerical Print
Assembly
Nominal Lay Length	12-16X Core Diameter in LHL, Nominal
Binder	Helically Applied Polyster Thread
Markings
Type	Conductors permanently identified via surface inkjet print
Legend	LAKE CABLE E525775-01 18AWG C(UL)US HOISTWAY CABLE 600V 60C FT1
Standards
Operating Temperature Range	-40C to 60C
Maximum operating voltage	600V RMS

Copper Price 10/17/2024 4.3025
