HWV144-X-NJ

14AWG/4C PVC BUNDLE NO JACKET (UL) HOISTWAY 60C 600V

SKU: HWV144-X-NJ

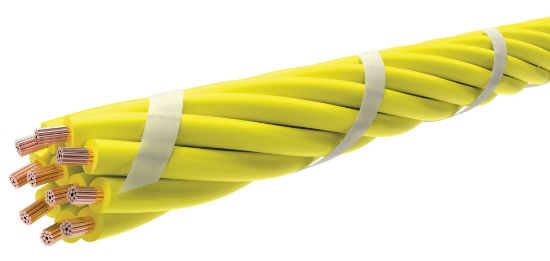

14 AWG 4C 41 STRAND BARE COPPER WIRE WITH .030" PVC INSULATION, NON-SHIELDED, OVERALL HELICALLY APPLIED POLYESTER THREAD.

C(UL)US HOISTWAY CABLE 600V 60C FT1

CC: RED, WHITE, BLACK, GREEN

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	14 Awg 41 Strands Class K
Material	Annealed Bare Copper
Conductor Count	4
Insulation
Material	Polyvinylchloride
Wall Thickness	0.030"
Color Code	Red, White, Black, Green
Assembly
Nominal Lay Length	12-16X Core Diameter in LHL, Nominal
Binder	Helically Applied Polyster Thread
Markings
Type	Conductors permanently identified via surface inkjet print
Legend	LAKE CABLE E525775-01 14AWG C(UL)US HOISTWAY CABLE 600V 60C FT1
Standards
Operating Temperature Range	-40C to 60C
Maximum operating voltage	600V RMS

Copper Price 10/17/2024 4.3025
