HWV148-X-NJ

14AWG/8C PVC BUNDLE NO JACKET (UL) HOISTWAY 60C 600V

SKU: HWV148-X-NJ

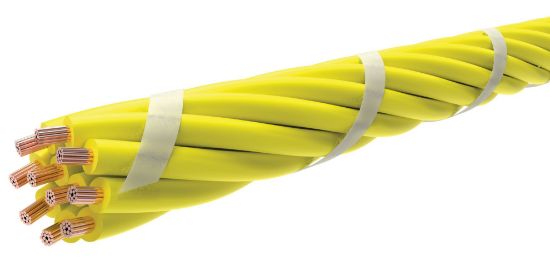

14 AWG 8C 41 STRAND BARE COPPER WIRE WITH .030" PVC INSULATION, NON-SHIELDED, OVERALL HELICALLY APPLIED POLYESTER THREAD.

C(UL)US HOISTWAY CABLE 600V 60C FT1

CC: GREEN #1, WHITE #2-4, BLACK #5-8

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	14 Awg 41 Strands Class K
Material	Annealed Bare Copper
Conductor Count	8
Insulation
Material	Polyvinylchloride
Wall Thickness	0.030"
Color Code	Green #1, White #2-4, Black #5-8
Assembly
Nominal Lay Length	12-16X Core Diameter in LHL, Nominal
Binder	Helically Applied Polyster Thread
Markings
Type	Conductors permanently identified via surface inkjet print
Legend	LAKE CABLE E525775-01 14AWG C(UL)US HOISTWAY CABLE 600V 60C FT1
Standards
Operating Temperature Range	-40C to 60C
Maximum operating voltage	600V RMS

Copper Price 11/21/2024 4.1235
