HWV187-NJ

Not what you were looking for?

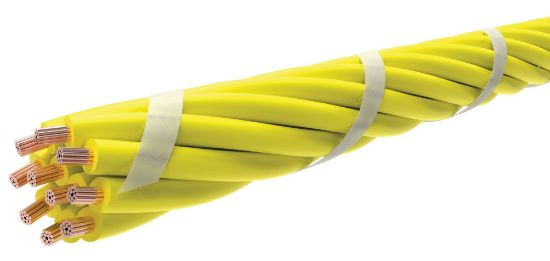

18AWG 7C PVC BUNDLE NO JACKET (UL) HOISTWAY 600V 60C

SKU: HWV187-NJ

18 AWG 7C 16 STRAND BARE COPPER WIRE WITH .030" PVC INSULATION, NON-SHIELDED, HELICALLY APPLIED POLYESTER THREAD.

C(UL)US HOISTWAY CABLE 600V 60C FT1

CC: YELLOW 1-ONE THRU 7-SEVEN

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	18 Awg 16 Strands Class K
Material	Annealed Bare Copper
Conductor Count	7
Insulation
Material	Polyvinylchloride
Wall Thickness	0.030"
Color Code	1 thru 10 Yellow with Numerical Print, 11 thru 20 Orange with Numerical Print, 21 thru 30 Tan with Numerical Print, 31 thru 40 Blue with Numerical Print
Assembly
Nominal Lay Length	12-16X Core Diameter in LHL, Nominal
Binder	Helically Applied Polyster Thread
Markings
Type	Conductors permanently identified via surface inkjet print
Legend	LAKE CABLE E525775-01 18AWG C(UL)US HOISTWAY CABLE 600V 60C FT1
Standards
Operating Temperature Range	-40C to 60C
Maximum operating voltage	600V RMS

Copper Price 11/21/2024 4.1235
