L121PR

Not what you were looking for?

12AWG 1PR SOLID BC NS FPLP RED FPLP 150C LL39 NYC

SKU: L121PR

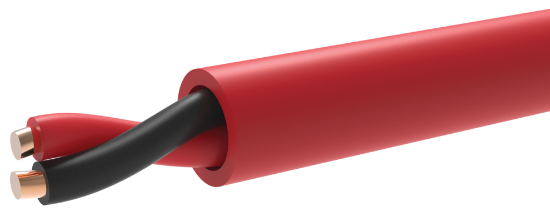

12 AWG 1 PAIR SOLID BARE COPPER WIRE WITH .015" PVDF INSULATION, NON-SHIELDED, OVERALL .025" RED PVDF JACKET.

150'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	12 AWG Solid
Material	Bare Copper Wire
Conductor Count	1 Pair
AWG & Stranding	12 Awg Solid
Insulation
Material	Polyvinylidene Fluoride
Wall Thickness	.015"
Color Code	Black, Red
Assembly
Cable Lay Length	4.50” LHL (2.66 Tw/Ft)
Shield	N/A
Drain Wire	N/A
Nominal Lay Length	4.50”
Jacket
Material	Polyvinylidene Fluoride
Wall Thickness	.025"
Diameter	0.272”
Color	Red
Ripcord	No
Weight	65 lbs per mft
Cold Temp Rating	-30’C
Nominal Diameter	.272"
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE P# L121PR E171203 12AWG 1PR 150C (UL) FPLP FT6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 “ROHS COMPLIANT” MADE IN USA
Footage Markers	Yes
Standards
Maximum operating voltage	300V
Operating Temperature Range	-40C TO 150C

Copper Price 12/20/2024 4.0325
