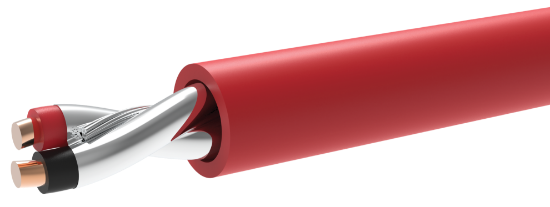

Picture of L161PRS
Picture of L161PRS
Picture of L161PRS
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

L161PRS

Not what you were looking for?
16AWG 1PR SOLID BC OAS FPLP RED FPLP 150C LL39 NYC
SKU: L161PRS


16 AWG 1 PAIR SOLID BARE COPPER WIRE WITH .015" PVDF INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .025" RED PVDF JACKET.

150'C (UL) FPLP FT-6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & RED

RIPCORD: NO

FOOTAGE MARKERS: NO

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Electricals
Impedance29 Ω +/-10%
Capacitance165 pF/ft. +/-10% (SHIELD)
DC Resistance4.0 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding16 AWG Solid
MaterialBare Copper Wire
Conductor Count1 Pair
AWG & Stranding16 Awg Solid
Insulation
MaterialPolyvinylidene Fluoride
Wall Thickness.015"
Color CodeBlack, Red
Assembly
Nominal Lay Length4.50”
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire20 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPolyvinylidene Fluoride
Wall Thickness.025"
Diameter0.215”
ColorRed
RipcordNo
Weight36 lbs per mft
Nominal Diameter.215"
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE P# L161PRS E171203 16AWG 1PR 150C (UL) FPLP FT6 CLASSIFIED NYC CERT FIRE ALARM E-Z STRIP LL39 "ROHS COMPLIANT" MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
Cold Temperature Rating-40’c
Operating Temperature Range-40C TO 150C

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
