OSDPACCESS2P-04

22/2PRS + 18/4C + 22/4C + 22/2C OSDP COMPOSITE PVC YELLOW

SKU: OSDPACCESS2P-04

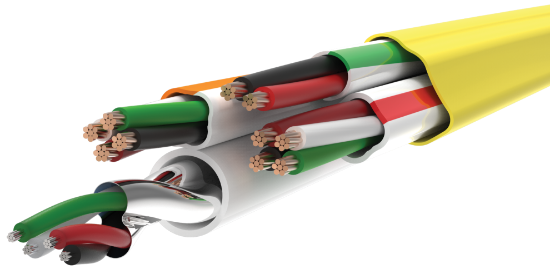

A 4 ELEMENT 14C PLENUM RATED COMPOSITE CABLE

ELEMENT 1: 22 AWG 2 PAIR 7 STRAND TINNED COPPER WIRE WITH .016" FOAM FEP INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, NON-SHIELDED, OVERALL .013" WHITE SGPVC JACKET.
CC: BLACK & RED, WHITE & GREEN
PRINT: OSDP CARD READER A B C D E 0 1 2 3 4 5 6 7 8 9

ELEMENT 2: 18 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .013" WHITE WITH A CO-EXTRUDED ORANGE STRIPE SGPVC JACKET.
CC: BLACK, RED, WHITE, GREEN
PRINT: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9

ELEMENT 3: 22 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .013" WHITE WITH A CO-EXTRUDED RED STRIPE SGPVC JACKET.
CC: BLACK, RED, WHITE, GREEN
PRINT: REX/SPARE A B C D E 0 1 2 3 4 5 6 7 8 9

ELEMENT 4: 22 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .013" WHITE WITH A CO-EXTRUDED GREEN STRIPE SGPVC JACKET.
CC: BLACK, RED
PRINT: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9

THE FOUR INDIVIDUALLY JACKETED ELEMENTS ARE CABLED WITH AN OVERALL .018" YELLOW SGPVC JACKET.
(UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA
PRINT: LAKE CABLE OSDPCOMOBO1 ACCESS CONTROL CABLE
RIPCORD: YES ON ALL ELEMENTS AND OVERALL
FOOTAGE MARKERS: OVERALL CABLE ONLY

INNER JACKETED ELEMENTS PRINTED WITH (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Elements
Element 1	22 AWG 2PR Foam FEP Shielded Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 2 PR Insulation Material: Foam FEP Wall Thickness: 0.016” Diameter: 0.060” + 0.002” Color Code: Green X White, Orange x Brown Assembly Pair Lay Length: 2.00” LHL (6.00 Tw/Ft) Shield: Aluminum/Mylar Tape 100% Coverage Drain Wire: 24 AWG 7 Strands Tinned Copper Cable Lay Length: 3.00” LHL (4.00 Tw/Ft) Jacket Material: PVC Wall thickness: 0.013” Diameter: 0.203” + 0.015” Color: White Ripcord: Yes Weight: 30 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: OSDP A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 22 AWG 2PR SHIELDED 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No Nominal Electrical Characteristics Impedance: 120 Ω Capacitance: 11 F/ft DC Resistance: 16.5 Ω/Mft @ 20°C Maximum
Element 3	18 AWG 4 Conductors Unshielded Conductor AWG Size & Stranding: 18 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 4 Conductors Insulation Material: PVC Wall Thickness: 0.007” Diameter: 0.059” + 0.002” Color code: Black, Red, White, Green Assembly Cable Lay Length: 3.00” LHL (4.00 Tw/Ft) Jacket Material: PVC 1 Wall thickness: 0.013” Diameter: 0.168” + 0.015” Color: White/Orange Ripcord: Yes Weight: 29 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: LOCK POWER A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 18 AWG 4C 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No
Element 4	22 AWG 4 Conductors Unshielded Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 4 Conductors Insulation Material: PVC Wall Thickness: 0.007” Diameter: 0.042” + 0.002” Color code: Black, Red, White, Green Assembly Nominal Lay Length: 3.00” LHL (4.00 Tw/Ft) Jacket Material: PVC Wall thickness: 0.013” Diameter: 0.127” + 0.010” Color: White/Red Ripcord: Yes Weight: 14 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: REX/SPARE A B C D E 0 1 2 3 4 5 6 78 9 E171202 22 AWG 4C 75C (UL)CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No
Element 2	22 AWG 2 Conductors Unshielded Conductor AWG Size & Stranding: 22 AWG 7 Strands Class B Material: Annealed Bare Copper Conductor Count: 2 Conductors Insulation Material: Plenum Rated PVC Wall Thickness: 0.007” Diameter: 0.042” + 0.002” Color code: Black, Red Assembly Nominal Lay Length: 2.00” LHL (6.00 Tw/Ft) Jacket Material: PVC Wall thickness: 0.013” Diameter: 0.110” + 0.010” Color: White/Green Ripcord: Yes Weight: 8 lbs./Mft. Markings* Type: Cable shall be permanently identified via surface inkjet print Legend: DOOR CONTACT A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 22 AWG 2C 75C (UL)CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: No
Overall Assembly
Nominal Lay Length (All Elements)	Nominal Lay Length: 8.00” LHL (1.00 Tw/Ft)
Jacket	Material: PVC Wall thickness: 0.018” Diameter: 0.440” ± 0.035” Color: Yellow Ripcord: Yes Weight: 100 lbs./Mf
Markings	Type: Cable shall be permanently identified via surface inkjet print Legend: LAKE CABLE ACCESS CONTROL E171202 22 AWG 2PR SHIELD + 18 AWG 4C +22 AWG 4C + 22 AWG 2C 75C (UL) CL3P OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA Footage Markers: Yes Ascending/Descending
Approvals
Approvals List	Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines Cable suitable for installation in Canada under Section 60 of CEC, Part I C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17 UL listed as CL3P per UL standard 13 Cable meets NFPA 262 (Steiner tunnel) flame test Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive Operating Voltage: 300V RMS Made in the USA WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause
