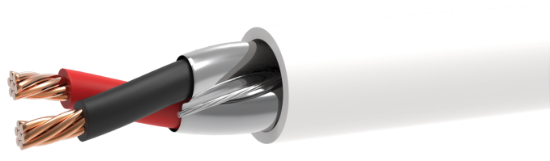

Picture of P142CS/K2
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

P142CS/K2

Not what you were looking for?
14AWG 2C 19STR BC OAS CL3P/FPLP 75C NATURAL
SKU: P142CS/K2


14 AWG 2C 19 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" NATURAL SGPVC JACKET.

(UL) CL3P OR (UL) FPLP 75'C "ROHS COMPLIANT" FT-6 MADE IN USA

CC: BLACK & RED

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG & Stranding14 Awg 19 Strand
MaterialBare Copper Wire
Conductor Count2
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.009"
Color CodeBlack, Red
Assembly
Nominal Lay Length4.00"
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire24 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.015"
ColorNatural
RipcordYes
Nominal Diameter0.215"
Weight39 lbs per mft
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171202 14AWG 2C 75C SHIELDED (UL) CL3P OR FPLP FT6 “ROHS COMPLIANT” MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
