P144FS7

14AWG 4C 7STR BC SHIELDED FPLP/CL3P 75C RED

SKU: P144FS7

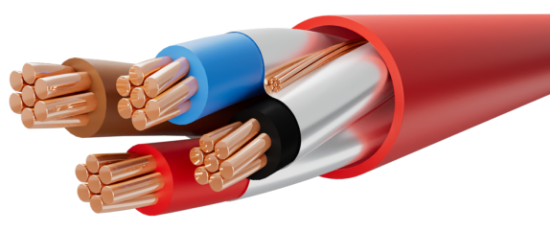

14 AWG 4C 7 STRAND BARE COPPER WIRE WITH .009" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET RED.

(UL) FPLP OR CL3P 75'C FT6 "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, BROWN, BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	14 Awg 7 Strand
Material	Bare Copper Wire
Conductor Count	4
Insulation
Material	Plenum Rated Polyvinylchloride
Wall Thickness	.009"
Color Code	Black, Red, Brown, Blue
Assembly
Nominal Lay Length	4.00”
Shield	Aluminum Mylar Tape Shield - 100% Coverage
Drain Wire	24 Awg 7 Strand Tinned Copper Wire
Jacket
Material	Plenum Rated Polyvinylchloride
Wall Thickness	.015"
Color	Red
Ripcord	Yes
Nominal Diameter	0.251”
Weight	70 lbs per mft
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 14AWG 4C SHIELDED 75C (UL) CL3P OR FPLP FT6 “ROHS COMPLIANT” MADE IN USA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C
