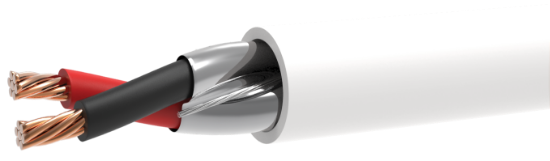

Picture of P163CS
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

P163CS

Not what you were looking for?
16AWG 3C 19STR BC OAS CMP/CL3P/FPLP 75C NATURAL
SKU: P163CS


16 AWG 3C 19 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL.

(UL) CL3P OR CMP C(UL)US 75'C FT-6 "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, & WHITE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding16 AWG 19 Strands Class C
MaterialBare Copper Wire
Conductor Count3
AWG & Stranding16 Awg 19 Strand
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.007"
Color CodeBlack, Red, White
Assembly
Nominal Lay Length3.00”
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire24 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.015"
Diameter0.188”
ColorNatural
RipcordYes
Weight36 lbs per mft
Nominal Diameter0.184”
Markings
TypePermanent Inkjet Surface Print
LegendLAKE CABLE E171197 16AWG 3C SHIELDED 75C (UL) CL3P OR FPLP OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA
Footage MarkersAscending/Descending
Standards
Maximum Voltage300V
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
