P164FS

16AWG 4C SOLID BC SHIELDED FPLP/CMP/CL3P 75C RED

SKU: P164FS

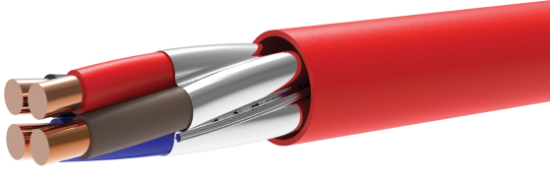

16 AWG 4C SOLID BARE COPPER WIRE WITH .009" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" RED SGPVC JACKET.

(UL) CL3P OR FPLP OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, BROWN, BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	16 Awg Solid
Material	Bare Copper Wire
Conductor Count	4
Insulation
Material	Plenum Rated Polyvinylchloride
Wall Thickness	.009"
Color Code	Black, Red, Brown, Blue
Assembly
Nominal Lay Length	3.00”
Shield	Aluminum Mylar Tape Shield - 100% Coverage
Drain Wire	24 Awg 7 Strand Tinned Copper Wire
Jacket
Material	Plenum Rated Polyvinylchloride
Wall Thickness	.015"
Diameter	0.200”
Color	Red
Ripcord	Yes
Weight	48 lbs per mft
Nominal Diameter	0.199”
Markings
Type	Permanent Inkjet Surface Print
Legend	LAKE CABLE E171202 16AWG 4C SHILEDED 75C (UL) CL3P OR FPLP OR C(UL)US CMP FT6 “ROHS COMPLIANT” MADE IN USA
Footage Markers	Ascending/Descending
Standards
Maximum operating voltage	300V
Operating Temperature Range	-20C TO 75C

Copper Price 11/22/2024 4.0590
