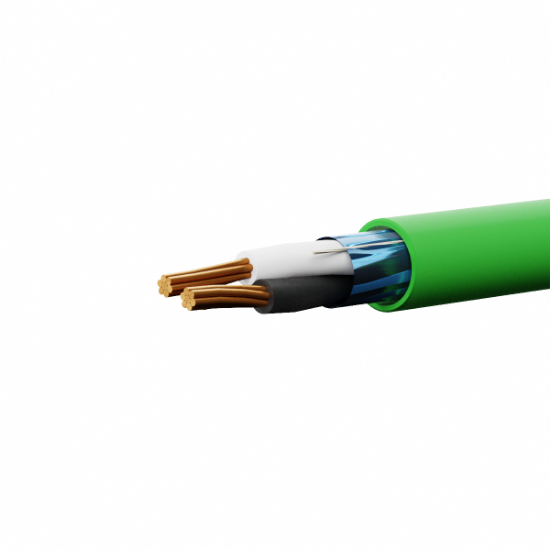

P182CS-47TUX

18 AWG 2 conductor 7 strand bare copper wire, plenum rated PVC insulation, shielded, with an overall plenum rated PVC jacket. (UL) CL3P or CMP C(UL)US 75’C FT-6 for ALERTON – TUX TRUNK / SENSORS

SKU: P182CS-47TUX

• Cable suitable for installations under NEC (NFPA 70) article 725 and article 800 guidelines
• UL listed as type CL3P per UL standard 13 and as type CMP c(UL)us 75°C FT-6 per UL standard 444
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	18 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	2 Conductors
Insulation
Material	Plenum Rated Polyvinylchloride
Wall Thickness	0.007”
Color Code	Black, White
Assembly
Nominal Lay Length	3.00” LHL (6.0 Tw/Ft)
Shield	Aluminum Mylar Tape – 100% Coverage
Drain Wire	24 AWG 7 Strand Tinned Copper
Jacket
Material	Plenum Rated Polyvinylchloride
Wall Thickness	0.015”
Diameter	0.157”
Color	Green
Ripcord	Yes
Weight	21 Lbs/Mft
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	ALERTON – TUX TRUNK / SENSORS A B C D E 0 1 2 3 4 5 6 7 8 9 E171197 18AWG 2C SHLD (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS”
Footage Markers	Yes
Standards
Maximum operating voltage	300V

Copper Price 12/20/2024 4.0325
