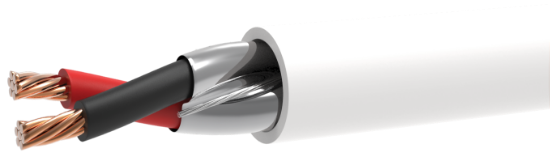

Picture of P226CS
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

P226CS

Not what you were looking for?
22AWG 6C 7STR BC OAS CMP/CL3P/FPLP 75C NATURAL
SKU: P226CS


22 AWG 6C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" NATURAL SGPVC JACKET.

(UL) CL3P OR FPLP OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

CC: BLACK, RED, WHITE, GREEN, BROWN, BLUE

RIPCORD: YES

FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialBare Copper Wire
Conductor Count6
AWG & Stranding22 Awg 7 Strand
Insulation
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.007"
Color CodeBlack, Red, White, Green, Brown, Blue
Assembly
Nominal Lay Length3.50”
ShieldAluminum Mylar Tape Shield - 100% Coverage
Drain Wire24 Awg 7 Strand Tinned Copper Wire
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness.015"
Diameter0.160”
ColorNatural
RipcordYes
Weight23 lbs per mft
Nominal Diameter0.158”
Markings
TypePermanent Inkjet Surface Print
Print LegendLAKE CABLE E171197 22AWG 6C (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS”
Footage MarkersAscending/Descending
LegendLAKE CABLE E171202 22AWG 6C SHIELDED 75C (UL) CL3P OR FPLP OR C(UL)US CMP FT6 "ROHS COMPLIANT" MADE IN USA
Standards
Maximum Voltage300V
Maximum operating voltage300V
Operating Temperature Range-20C TO 75C
