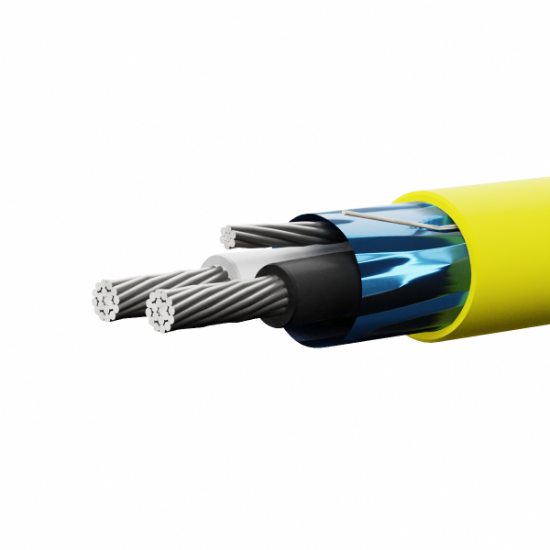

Picture of PFF182CST19-04
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

PFF182CST19-04

Not what you were looking for?
18 AWG 2 conductor 19 strand tinned copper wire, plenum rated Foam FEP insulation, shielded, with an overall plenum rated PVC jacket.
SKU: PFF182CST19-04


• Refer to NEC (NFPA 70) article 725, 760, and article 800 for installation guidelines
• UL listed as type CL3P per UL standard 13, as type CMP c(UL)us per UL standard 444, and as type FPLP 75°C per UL standard 1424
• All materials used in the manufacture of this cable are RoHS II & REACH compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Electricals
Impedance49.6 Ω +/-10%
Capacitance26.5 pF/ft. +/-10%
DC Resistance5.84 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding18AWG 19 Strands Class C
MaterialAnnealed Tinned Copper
Conductor Count2 Conductors
Insulation
MaterialPlenum rated Foam FEP
Wall Thickness0.009”
Color CodeBlack, White
Assembly
Nominal Lay Length2.50” LHL (4.80 Tw/Ft)
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire20 AWG 7 Strand Tinned Copper
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.014”
Diameter0.180”
ColorYellow
RipcordYes
Weight25 Lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendTRANE YELLOW HVAC CABLE E171197 18AWG 2C (UL) CMP C(UL)US OR (UL) CL3P OR (UL) FPLP 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V

Remember, all of our wire can feature:

  • Short minumum runs
  • Special jacket colors including stripes
  • Custom print legends
  • Custom cable constructions
  • Custom packaging - boxes or reels
  • Custom lengths
  • Your name on package labels
