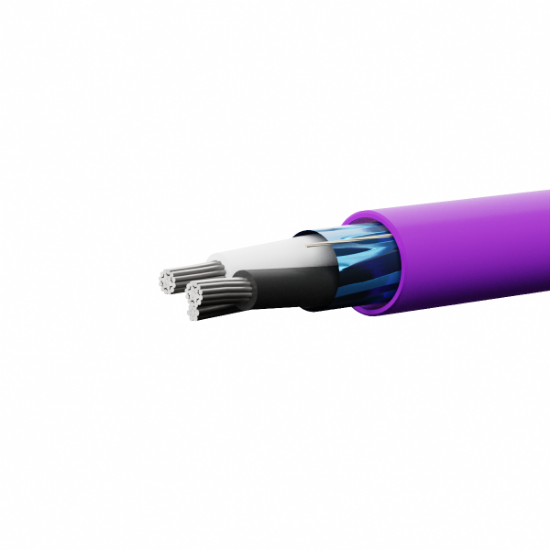

Picture of PFF182CST19-07

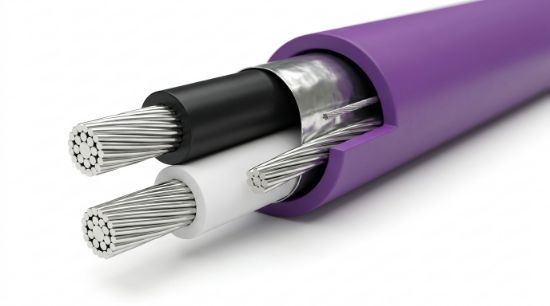

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

PFF182CST19-07

Not what you were looking for?
18AWG 2C 19STR TC OAS MIDCAP CMP 75C PURPLE
SKU: PFF182CST19-07


18 AWG 2C 19 STRAND TINNED COPPER WIRE WITH .009" FOAMED FEP INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 20 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .014" PURPLE SGPVC JACKET.

(UL) CMP C(UL)US OR (UL) CL3P OR (UL) FPLP 75'C FT-6 "ROHS COMPLIANT" MADE IN USA

CC: BLACK & WHITE

RIPCORD: YES

FOOTAGE MARKERS: YES

CAPACITANCE: 26.5 PF/FT

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Electricals
Impedance49.6 Ω +/-10%
Capacitance26.5 pF/ft. +/-10%
DC Resistance5.84 Ω/Mft. @ 20°C
Conductor
AWG Size & Stranding
Material
Conductor Count
Insulation
Material
Wall Thickness
Color Code
Assembly
Nominal Lay Length
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire20 AWG 7 Strand Tinned Copper
Jacket
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.014”
Diameter0.180”
ColorViolet
RipcordYes
Weight25 Lbs/Mft
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendTRANE PURPLE HVAC CABLE E171197 18AWG 2C (UL) CMP C(UL)US OR (UL) CL3P OR (UL) FPLP 75’C FT-6 “ROHS II” REACH MADE IN USA
Footage MarkersYes
Standards
Maximum operating voltage300V
