PFF222PRCST/X-04OSDP

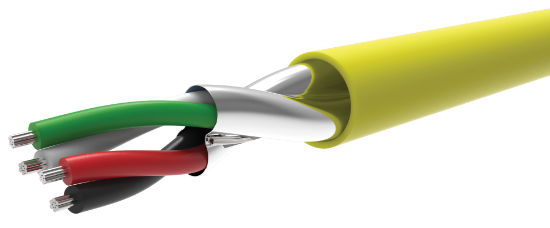

22AWG 2PR 7XTC OAS FFEP/SGPVC CMP YELLOW
SKU: PFF222PRCST/X-04OSDP


22 AWG 2 PAIR 7 STRAND TINNED COPPER WIRE WITH .016" FOAMED FEP INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET YELLOW

(UL) CL3P OR FPLP OR C(UL)US CMP FT6 75C "ROHS COMPLIANT" MADE IN USA
CC: BLACK & RED, WHITE & GREEN
PRINT: LAKE CABLE RS485 120 OHM OSDP ZONE A B C D E 0 1 2 3 4 5 6 7 8 9
RIPCORD: YES
FOOTAGE MARKERS: YES

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding22 AWG 7 Strand
MaterialTinned Copper Wire
Conductor Count2 Pair
Insulation
MaterialFoamed FEP
Wall Thickness.016"
Color CodeBlack & Red, White & Green
Assembly
ShieldAluminum Mylar Tape Shield - 100% Coverage
Cable Drain Wire24 AWG 7 Strand Tinned Copper
Standards
Maximum operating voltage300V
Operating Temperature Range75C
Jacket - Overall Cable
MaterialPlenum-Rated Polyvinylchloride
ColorYellow
Wall Thickness.015"
Diameter.230"
Weight25
RipcordYes
Markings - Overall Cable
LegendLAKE CABLE RS485 120 OHM OSDP ZONE A B C D E 0 1 2 3 4 5 6 7 8 9 (UL) CL3P OR FPLP OR C(UL)US CMP FT6 75C "ROHS COMPLIANT" MADE IN USA
Footage MarkersAcsending/Descending
Approvals
Approvals List

Cable suitable for installation under NEC (NFPA 70) articles 800, 725 and 760 guidelines
Cable suitable for installation in Canada under Section 60 of CEC, Part I
C(UL)US listed as CMP per UL standard 444 and per CSA C22.2 No. 214-17
UL listed as CL3P per UL standard 13 or FPLP per UL standard 1424
Cable meets NFPA 262 (Steiner tunnel) flame test
Cable meets RoHS 2002/95/EC Directive, RoHS 2 2011/65/EU Directive, RoHS 3 2015/863/EU Directive
Made in the USA
WARNING: This product may contain chemicals, such as Vinyl Chloride, known to the state of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Wash hands after handling.
