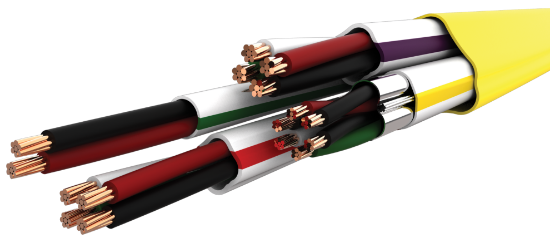

Picture of S16C4ECMP-04
For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

S16C4ECMP-04

Not what you were looking for?
18/4C+22/3PR OS+22/2C+22/4 CMP YELLOW
SKU: S16C4ECMP-04


A 4 ELEMENT 16C PLENUM RATED COMPOSITE CABLE

ELEMENT 1: 18 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" NATURAL WITH A CO-EXTRUDED PURPLE STRIPE SGPVC JACKET
CC: BLACK, RED, WHITE, GREEN
PRINT: LOCK POWER/PIR DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 2: 22 AWG 3 PAIR 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" NATURAL WITH A CO-EXTRUDED YELLOW STRIPE SGPVC JACKET
CC: BLACK & RED, GREEN & WHITE, ORANGE & BROWN
PRINT: CARD READER DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 3: 22 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" NATURAL WITH A CO-EXTRUDED GREEN STRIPE SGPVC JACKET
CC: BLACK & RED
PRINT: DOOR CONTACT DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

ELEMENT 4: 22 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, NON-SHIELDED, OVERALL .015" NATURAL WITH A CO-EXTRUDED RED STRIPE SGPVC JACKET
CC: BLACK, RED, WHITE, GREEN
PRINT: REX/SPARE DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12

THE FOUR INDIVIDUALLY JACKETED ELEMENTS ARE CABLED WITH AN OVERALL .023" YELLOW SPECIAL SGPVC JACKET
PRINT: LAKE CABLE PLENUM ACCESS CONTROL CABLE A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA
RIPCORD: YES ON ALL ELEMENTS AND OVERALL
FOOTAGE MARKERS: OVERALL CABLE ONLY
INNER JACKETED ELEMENTS PRINTED WITH (UL) CL3P OR C(UL)US CMP FT-6 "ROHS COMPLIANT" MADE IN USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor - Element 1 18 AWG 4C Unshielded
AWG Size & Stranding18 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation - Element 1 18 AWG 4C Unshielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red, White, Green
Assembly - Element 1 18 AWG 4C Unshielded
Nominal Lay Length2.50” LHL (4.80 Tw/Ft)
Shield/Drain WireN/A
Jacket - Element 1 18 AWG 4C Unshielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.190”
ColorNatural/Purple
Weight32 lbs./Mft.
Markings - Element 1 18 AWG 4C Unshielded
TypeCable shall be permanently identified via surface inkjet print
Legend*** LOCK POWER/PIR *** DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 18AWG 4C (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS II” MADE IN USA
Footage MarkersYes
Conductor
Material
Conductor Count
Insulation
Material
Wall Thickness
Color Code
Assembly
Nominal Lay Length
Conductor - Element 2 22 AWG 3PR Shielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count3 Pairs
Insulation - Element 2 22 AWG 3PR Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack x Red, Green x White, Orange x Brown
Assembly - Element 2 22 AWG 3PR Shielded
Pair Lay Length2.00” LHL (6.00 Tw/Ft)
Cable Lay Length2.50” LHL (4.80 Tw/Ft)
Cable ShieldAluminum/Mylar – 100% Coverage
Cable Drain Wire24 AWG 7 Strand Tinned copper
Jacket - Element 2 22 AWG 3PR Shielded
RipcordYes, Yes
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.183”
ColorNatural/Yellow
Weight25 lbs./Mft.
Markings - Element 2 22 AWG 3PR Shielded
TypeCable shall be permanently identified via surface inkjet print
Legend*** CARD READER *** DOOR/LOCATION A B C D E F/ 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 22AWG 3PR (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS II” MADE IN USA
Footage MarkersNo
Conductor - Element 3 22 AWG 2C Unshielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation - Element 3 22 AWG 2C Unshielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Assembly - Element 3 22 AWG 2C Unshielded
Nominal Lay Length3.00” LHL (4.00 tw/ft)
Shield/Drain WireN/A
Jacket - Element 3 22 AWG 2C Unshielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.115”
ColorNatural/Green
RipcordYes
Weight9 lbs./Mft.
Markings - Element 3 22 AWG 2C Unshielded
TypeCable shall be permanently identified via surface inkjet print
Legend*** DOOR CONTACT *** DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 22AWG 2C (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS II” MADE IN USA
Footage MarkersNo
Conductor - Element 4 22 AWG 4C Unshielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation - Element 4 22 AWG 4C Unshielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red, White, Green
Assembly - Element 4 22 AWG 4C Unshielded
Nominal Lay Length1.75” LHL (6.86 tw/ft)
Shield/Drain WireN/A
Jacket - Element 4 22 AWG 4C Unshielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.132”
ColorNatural/Red
RipcordYes
Weight15 lbs./Mft.
Markings - Element 4 22 AWG 4C Unshielded
TypeCable shall be permanently identified via surface inkjet print
Legend*** REX/SPARE *** DOOR/LOCATION A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171197 22AWG 4C (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS II” MADE IN USA
Footage MarkersNo
Assembly - Overall Cable
Nominal Lay Length5.75” LHL (2.09 Tw/Ft)
ShieldN/A
Drain WireN/A
Jacket - Overall Cable
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.412”
ColorYellow
RipcordYes
Weight104 lbs./Mft.
Markings - Overall Cable
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE PLENUM ACCESS CONTROL CABLE A B C D E F / 0 1 2 3 4 5 6 7 8 9 10 11 12 E171202 18AWG 4C + 22AWG 3PR SHLD + 22AWG 4C + 22AWG 2C (UL) CMP C(UL)US OR (UL) CL3P 75’C FT-6 “ROHS II” MADE IN USA
Footage MarkersYes
Standards - Overall Cable
Maximum Operating Voltage300V RMS
