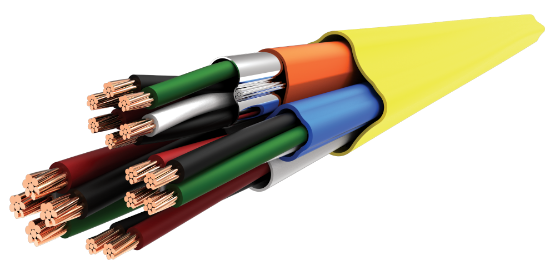

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

S801510-04R2

Not what you were looking for?
18/4C-SH+22/3PRS+22/2C-SH+22/4C-SH CMP YELLOW
SKU: S801510-04R2


A 16C 4 ELEMENT PLENUM RATED ACCESS CONTROL CABLE.

ELEMENT 1: 18 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED PURPLE STRIPE
CC: BLACK, RED, WHITE, GREEN
PRINT: LOCK POWER / PIR

ELEMENT 2: 22 AWG 3 PAIR 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED YELLOW STRIPE
CC: BLACK & RED, WHITE & GREEN, ORANGE & BROWN
PRINT: CARD READER

ELEMENT 3: 22 AWG 2C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED GREEN STRIPE
CC: BLACK & RED
PRINT: DOOR CONTACT

ELEMENT 4: 22 AWG 4C 7 STRAND BARE COPPER WIRE WITH .007" SGPVC INSULATION, OVERALL ALUMINUM MYLAR TAPE SHIELD WITH A 24 AWG 7 STRAND TINNED COPPER DRAIN WIRE, OVERALL .015" SGPVC JACKET NATURAL WITH A CO-EXTRUDED RED STRIPE
CC: BLACK, RED, WHITE, GREEN
PRINT: REX/SPARE

THE 4 ELEMENTS ARE CABLED WITH AN OVERALL .015" YELLOW SGPVC JACKET
(UL) CL3P OR CMP C(UL)US 75'C FT-6 "ROHS COMPLIANT" MADE IN USA
PRINT: LAKE CABLE PLENUM ACCESS CONTROL CABLE A B C D E 0 1 2 3 4 5 6 7 8 9
NOTE: ALL INNER ELEMENTS HAVE STANDARD UL PRINT: (UL) CL3P OR CMP C(UL)US 75'C FT-6 "ROHS COMPLIANT" MADE IN USA
FOOTAGE MARKERS: YES, OVERALL CABLE ONLY
RIPCORD: YES, INNER AND OVERALL JACKET

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor - Element 1 18 AWG 4C Shielded
AWG Size & Stranding18 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation - Element 1 18 AWG 4C Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red, White, Green
Assembly - Element 1 18 AWG 4C Shielded
Nominal Lay Length3.00” LHL (4.00 tw/ft)
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire24 AWG 7 strands tinned copper
Jacket - Element 1 18 AWG 4C Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.175”
ColorNatural / Violet
RipcordYes
Weight32 Lbs/Mft
Marking - Element 1 18 AWG 4C Shielded
TypeCable permanently identified via surface inkjet print
LegendE171202 18AWG 4C SHIELDED 75°C (UL) CL3P OR C(UL)US CMP FT-6 LOCK POWER/PIR “ROHS II” MADE IN USA
Footage MarkersN/A
Conductor
AWG Size & Stranding
Material
Conductor Count
Insulation
Material
Wall Thickness
Color Code
Assembly
Nominal Lay Length
Conductor - Element 2 22 AWG 3PR Shielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count3 Pairs
Insulation - Element 2 22 AWG 3PR Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack x Red, Green x White, Brown x Blue
Assembly - Element 2 22 AWG 3PR Shielded
Pair Lay Length2.00” LHL (6.00 tw/ft)
Cable Lay Length2.50” LHL (4.80 tw/ft)
Cable ShieldAluminum/Mylar Tape – 100% Coverage
Cable Drain Wire24 AWG 7 Strands Tinned copper
Jacket - Element 2 22 AWG 3PR Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.183”
ColorNatural / Yellow
RipcordYes
Weight25 Lbs/Mft
Markings - Element 2 22 AWG 3PR Shielded
TypeCable permanently identified via surface inkjet print
LegendE171202 22AWG 3PR SHIELDED 75°C (UL) CL3P OR C(UL)US CMP FT-6 CARD READER “ROHS II” MADE IN USA
Footage MarkersN/A
Conductor - Element 3 22 AWG 2C Shielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count2 Conductors
Insulation - Element 3 22 AWG 2C Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red
Assembly - Element 3 22 AWG 2C Shielded
Nominal Lay Length1.25” LHL (9.60 tw/ft)
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire24 AWG 7 Strands Tinned Copper
Jacket - Element 3 22 AWG 2C Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.117”
ColorNatural / Green
RipcordYes
Weight11 Lbs/Mft
Markings - Element 3 22 AWG 2C Shielded
TypeCable permanently identified via surface inkjet print
LegendE171202 22AWG 2C SHIELDED 75°C (UL) CL3P OR C(UL)US CMP FT-6 DOOR CONTACT “ROHS II” MADE IN USA
Footage MarkersN/A
Conductor - Element 4 22 AWG 4C Shielded
AWG Size & Stranding22 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count4 Conductors
Insulation - Element 4 22 AWG 4C Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.007”
Color CodeBlack, Red, White, Green
Assembly - Element 4 22 AWG 4C Shielded
Nominal Lay Length3.00” LHL (4.00 tw/ft)
ShieldAluminum/Mylar Tape – 100% Coverage
Drain Wire24 AWG 7 Strands Tinned Copper
Jacket - Element 4 22 AWG 4C Shielded
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.135”
ColorNatural / Red
RipcordYes
Weight17 Lbs/Mft
Markings - Element 4 22 AWG 4C Shielded
TypeCable permanently identified via surface inkjet print
LegendE171202 22AWG 4C SHIELDED 75°C (UL) CL3P OR C(UL)US CMP FT-6 REX/SPARE “ROHS II” MADE IN USA
Footage MarkersN/A
Assembly - Overall Cable
Nominal Lay Length5.50” LHL (2.18 tw/ft)
Jacket - Overall Cable
MaterialPlenum Rated Polyvinylchloride
Wall Thickness0.015”
Diameter0.397” ± .020”
ColorYellow
RipcordYes
Weight99 Lbs/Mft
Markings - Overall Cable
TypeCable permanently identified via surface inkjet print
LegendLAKE CABLE S801510-04R2 PLENUM ACCESS CONTROL CABLE A B C D E 0 1 2 3 4 5 6 7 8 9 E171202 18AWG 4C SHLD + 22AWG 3PR SHLD + 22AWG 2C SHLD + 22AWG 4C SHLD 75°C (UL) CL3P OR C(UL)US CMP FT-6 "ROHS II" MADE IN USA
Footage MarkersYes
Standards - Overall Cable
Maximum Operating Voltage300V RMS
