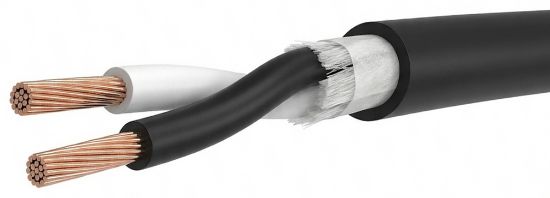

SJTOOW122

12 AWG 2 conductor 65 strand bare copper with PVC insulation, unshielded with an overall PVC jacket 300V flex cord cable, approved for use in sunlight and weather resistant 105°C applications.

SKU: SJTOOW122

• UL listed as Type SJTOOW per UL Standard 62 for flexible cords and fixture wire
• UL approved for Sunlight, Oil, and Weather Resistant & Water Resistant applications
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	12 AWG 65 Strands Class K
Material	Annealed Bare Copper
Conductor Count	2 Conductors
Insulation
Material	Polyvinylchloride (PVC)
Wall Thickness	0.032”
Color Code	Black, White
Assembly
Lay Length	2.75” LHL, (4.36 Tw/Ft)
Fillers	Fibrillated polypropylene
Binder	Tissue
Shield	N/A
Drain Wire	N/A
Jacket
Material	Polyvinylchloride (PVC)
Wall Thickness	0.047”
Diameter	0.416”
Color	Black
Ripcord	No
Weight	100 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E206089 12AWG (3.31MM²) 2C (UL) SJTOOW VW-1 C(UL)US 105’C 300V FT-2 WATER RESISTANT SUN RES “ROHS”
Footage Markers	Yes

Copper Price 11/19/2024 4.0960
