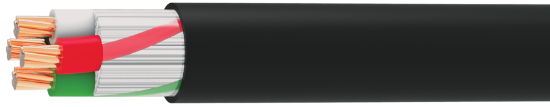

TX144

14 AWG 4 conductors 7 strands bare copper wire, XLPE insulation, unshielded, with an overall PVC jacket, (UL) PLTC, ITC 90’C DRY/WET SUN RES FT-4

SKU: TX144

• Cable suitable for installations under NEC (NFPA 70) article 725 guidelines
• Cable suitable for use in Class I Division II hazardous locations
• UL listed as Type PLTC per UL Standard 13 and ITC Type per (UL) Standard 2250
• UL approved for Sunlight Resistant and Direct Burial applications
• Meets IEEE 1202 flame test
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	14 AWG 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	4 Conductors
Insulation
Material	Cross Linked Polyethylene
Wall Thickness	0.020”
Color Code	Black, White, Red & Green
Assembly
Nominal Lay Length	4.25” LHL (2.82 tw/ft)
Binder	N/A
Shield	N/A
Drain Wire	N/A
Jacket
Material	Polyvinylchloride (PVC)
Wall Thickness	0.040”
Diameter	0.352”
Color	Black
Ripcord	Yes
Weight	101 Lbs/Mft
Markings
Type	Cable permanently identified via surface inkjet print
Legend	LAKE CABLE E171202 14AWG 4C (UL) PLTC OR (UL) ITC XLPE 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT-4 ‘ROHS”
Footage Markers	Yes
Standards
Maximum operating voltage	300V

Copper Price 12/20/2024 4.0325
