V162S

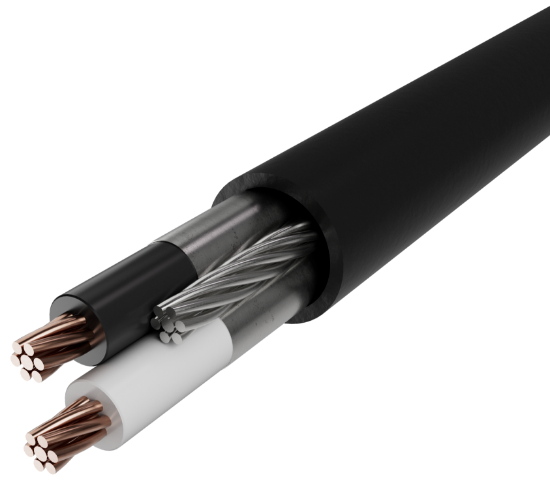

16 AWG 2 conductor 7 strand bare copper with polyvinylchloride and nylon insulation, an aluminum/mylar shield with a stranded tinned copper drain wire with an overall PVC jacket 600V control tray cable, approved for use in SUN RES DIR BUR OIL RES I 90°C applications.

SKU: V162S

• Made in the USA
• Refer to NEC (NFPA 70) article 1277 for installation guidelines
• Cable is suitable for use in Class I Division II hazardous locations
• UL listed as Type TC per UL Standard 1277 for tray cables
• UL approved for Direct Burial, Sunlight and Oil I Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, NEMA WC 57 where applicable
• All materials used in the manufacture of this cable are RoHS compliant

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.

Products specifications

Attribute name	Attribute value
Conductor
AWG Size & Stranding	16 AWG, 7 Strands Class B
Material	Annealed Bare Copper
Conductor Count	2 Conductors
Insulation
Material	Polyvinylchloride & Nylon
Wall Thickness	0.015” PVC & 0.005” Nylon
Color Code	Method 1, Table E-2
Assembly
Lay Length	Per UL Standard 1277
Fillers	N/A
Binder	N/A
Shield	Aluminum/Mylar Tape - 100% coverage
Drain Wire	20 AWG, 7 Strand Tinned Copper
Jacket
Material	Polyvinylchloride
Wall Thickness	0.045”
Diameter	0.293”
Color	Black
Ripcord	Yes
Cold Bend Rating	-40°C
Weight	50 lbs./Mft.
Markings
Type	Cable shall be permanently identified via surface inkjet print
Legend	LAKE CABLE E208309 16AWG 2C SHIELDED (UL) TC PVC/NYLON 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR OIL RES I FT4 “ROHS”
Footage Markers	Yes

Copper Price 11/19/2024 4.0960
