Picture of V182SPOS
Picture of V182SPOS
Picture of V182SPOS

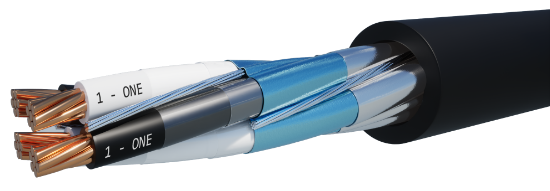

For representation only. Cable constructions may vary from illustration. Please see spec sheet for complete details.

V182SPOS

Not what you were looking for?
18 AWG 2 pairs 7 strand bare copper with polyvinylchloride and nylon insulation, aluminum/mylar shields with stranded tinned copper drain wires and an overall PVC jacket 600V control tray cable, approved for use in SUN RES DIR BUR 90°C applications.
SKU: V182SPOS


• Cable is suitable for use in Class I Division II hazardous locations
• UL listed as Type TC-ER per UL Standard 1277 for tray cables
• UL approved for Direct Burial and Sunlight Resistant applications
• Cable meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
• Meets ICEA S-73-532, where applicable
• All materials used in the manufacture of this cable are RoHS compliant
• Made in the USA
• Refer to NEC (NFPA 70) article 336 for installation guidelines

This spec is for informational purposes and subject to change. This spec may not be suitable for submission. Contact Lake Cable for non-watermark spec sheet.
Products specifications
Attribute nameAttribute value
Conductor
AWG Size & Stranding18 AWG 7 Strands Class B
MaterialAnnealed Bare Copper
Conductor Count2 Pairs
Insulation
MaterialPolyvinylchloride & Nylon
Wall Thickness0.015” PVC & 0.005” Nylon
Color CodeBlack & White numbered pairs
Assembly
Pair/Cable Lay LengthPer UL Standard 1277
Pair Drain Wire20 AWG, 7 Strand Tinned Copper
Pair ShieldFoil Free Edged Aluminum/Mylar Tape – 100% coverage
Cable BinderN/A
Cable ShieldAluminum/Mylar Tape – 100% coverage
Cable Drain Wire18 AWG, 7 Strand Tinned Copper
FillersN/A
Jacket
MaterialPolyvinylchloride
Wall Thickness0.045”
Diameter0.373”
ColorBlack
RipcordYes
Cold Bend Rating-40°C
Weight77 lbs./Mft.
Markings
TypeCable shall be permanently identified via surface inkjet print
LegendLAKE CABLE E208309 18AWG 2PR SPOS (UL) TC-ER PVC/NYLON 600V 90’C DRY/WET PVC JACKET SUN RES DIR BUR FT4 “ROHS” MADE IN USA
Footage MarkersYes
